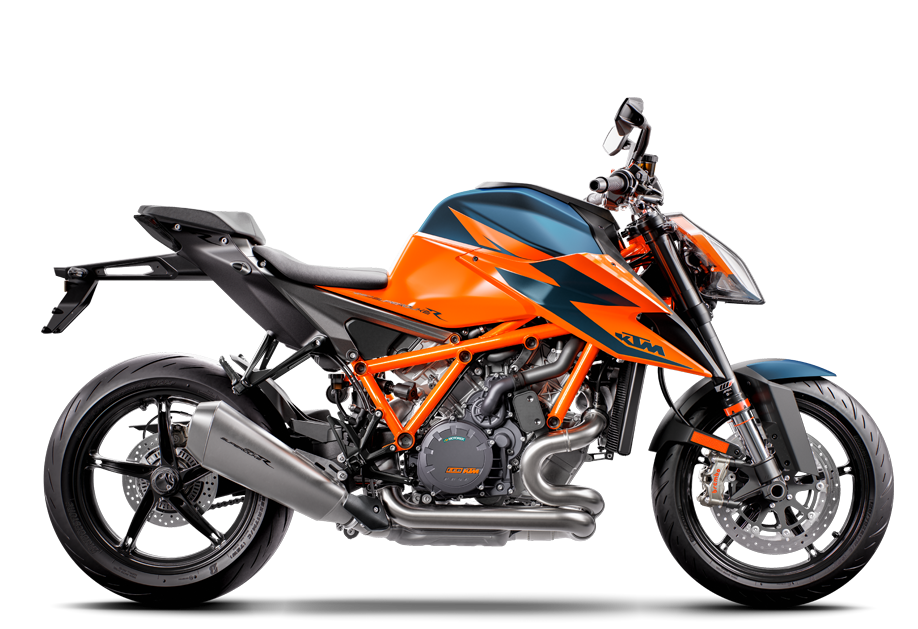

Sitting at the very top of the hyper-naked food chain, boasting a menacing collection of high-performance chassis and engine specifications, as well as top-shelf rider enhancements and electronics, the KTM 1290 SUPER DUKE R needs no introduction. But we gave it one anyway. Introducing THE BEAST.
Build your bike here:
Download Brochure hee:
Products specifications
Engine
|
|
Bore
|
108 mm |
|
Clutch
|
PASC (TM) slipper clutch, hydraulically actuated |
|
Cooling system
|
Liquid cooling system, continuous circulation of cooling liquid with water pump |
|
Design
|
2-cylinder, 4-stroke, spark-ignition engine, 75° V arrangement, liquid-cooled |
|
Displacement
|
1,301 cm³ |
|
Final drive
|
17:38 |
|
Ignition system
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication
|
Forced oil lubrication with 3 rotor pumps |
|
Max. power
|
140 NM |
|
Performance
|
132 kW |
|
Primary ratio
|
40:76 |
|
Starting aid
|
Electric starter |
|
Stroke
|
71 mm |
Chassis
|
|
Brake System
|
Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS) |
|
Brake system front
|
2 x Brembo Stylema Monobloc four piston, radially mounted caliper |
|
Brake system rear
|
Brembo twin-piston fixed calliper, brake disc |
|
Chain
|
520 X-Ring |
|
Diameter front
|
320 mm |
|
Diameter rear
|
240 mm |
|
Fork
|
WP USD Ø 48 mm |
|
Frame
|
Chromium-Molybdenum steel trellis frame, powder coated |
|
Ground clearance (unloaded)
|
160 mm |
|
Seat height (unloaded)
|
835 mm |
|
Shock absorber
|
WP monoshock |
|
Steering head angle
|
64.8 ° |
|
Suspension travel Front
|
125 mm |
|
Suspension travel Rear
|
156 mm |
|
Total fuel tank capacity approx.
|
16 L |
|
Weight without fuel approx.
|
189 kg |
|
Wheelbase
|
1,482±15 mm |
General
|
|
CapId
|
18465 |
|
Year
|
2021 |
